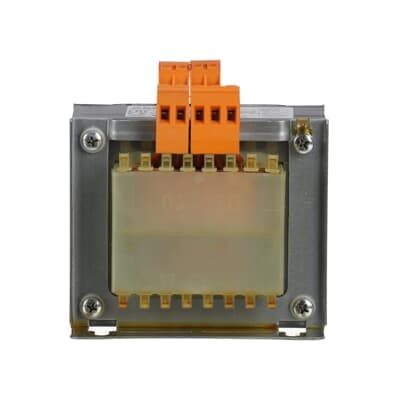

TM-S 320/24-48 P
Product ID:69362
Updated: 2026/4/3
Key Features
- 1Ensure precise voltage control via separate ±15V terminals. 2、Meet SELV/PELV safety standards with reinforced insulation. 3、Save space with a compact 123x122x102 mm design. 4、Rely on durable copper conductors for consistent performance. 5、Comply with CEI EN 61558-2-2 and -2-6 certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN 61558-2-2, EN 61558-2-6 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 4.8 kV |
| Primary Voltage | 230-400 ±15 V AC | Secondary Voltage | 24-48 V AC |
| Rated Frequency (f) | 50/60 Hz | Power Loss | 36 W |
| Power Supply | 320 V·A | Insulation Class | F |
| Fuse Type | aM | Material of Conductor | Copper |
| Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
| Environmental Information | See RoHS Information | Product Net Width | 123 mm |
| Product Net Height | 91 mm | Product Net Depth / Length | 102 mm |
| Product Net Weight | 4.4 g | ETIM 8 | EC002486 - One-phase control transformer |
| ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
| eClass | V11.0 : 27031302 | Object Classification Code | T |
| Manufacturer ID | 2CSM204673R0801 |
Specifications may be subject to change without notice
