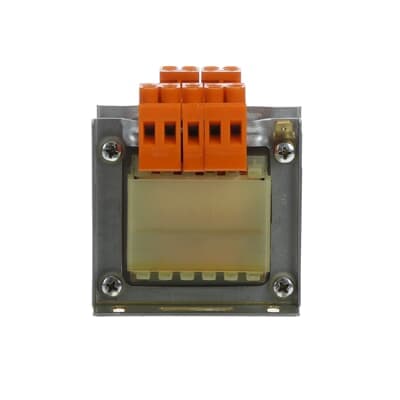

TM-S 50/12-24 P
Product ID:76308
Updated: 2026/7/14
Key Features
- 1Isolate circuits for safe extra-low voltage (<50V no load).
- 2Ensure reliable operation with reinforced primary-secondary insulation.
- 3Regulate voltage precisely using double 12-24V outputs.
- 4Power control and auxiliary circuits in distribution boards.
- 5Meet IEC EN 61558-2-4 and -2-6 safety standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN 61558-2-2, EN 61558-2-6 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 4.8 kV |
| Primary Voltage | 230-400 ±15 V AC | Secondary Voltage | 12-24 V AC |
| Rated Frequency (f) | 50/60 Hz | Power Loss | 9 W |
| Power Supply | 50 V·A | Insulation Class | F |
| Fuse Type | aM | Material of Conductor | Copper |
| Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
| Environmental Information | See RoHS Information | Product Net Width | 80 mm |
| Product Net Height | 69 mm | Product Net Depth / Length | 74 mm |
| Product Net Weight | 1.1 g | ETIM 8 | EC002486 - One-phase control transformer |
| ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
| eClass | V11.0 : 27031302 | Object Classification Code | T |
| Manufacturer ID | 2CSM236893R0801 |
Specifications may be subject to change without notice
