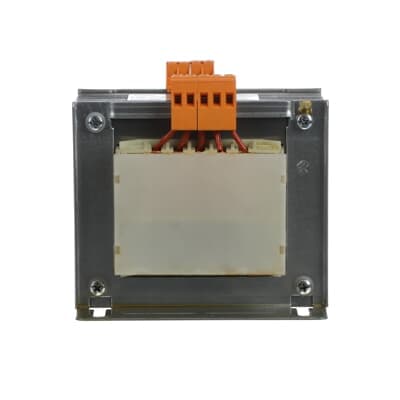

TM-S 630/24-48 P
Product ID:68952
Updated: 2026/4/3
Key Features
- 1Supply safe (<50V) isolated circuits for SELV/PELV applications. 2、Withstand accidental contact on secondary windings without danger. 3、Deliver 630 VA apparent power for diverse industrial uses. 4、Fit into compact spaces measuring 154x150x126 mm. 5、Obtain CE certification and full technical data sheet.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN 61558-2-2, EN 61558-2-6 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 4.8 kV |
| Primary Voltage | 230-400 ±15 V AC | Secondary Voltage | 24-48 V AC |
| Rated Frequency (f) | 50/60 Hz | Power Loss | 47 W |
| Power Supply | 630 V·A | Insulation Class | F |
| Fuse Type | aM | Material of Conductor | Copper |
| Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
| Environmental Information | See RoHS Information | Product Net Width | 154 mm |
| Product Net Height | 122 mm | Product Net Depth / Length | 126 mm |
| Product Net Weight | 7.8 g | ETIM 8 | EC002486 - One-phase control transformer |
| ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
| eClass | V11.0 : 27031302 | Object Classification Code | T |
| Manufacturer ID | 2CSM204603R0801 |
Specifications may be subject to change without notice
