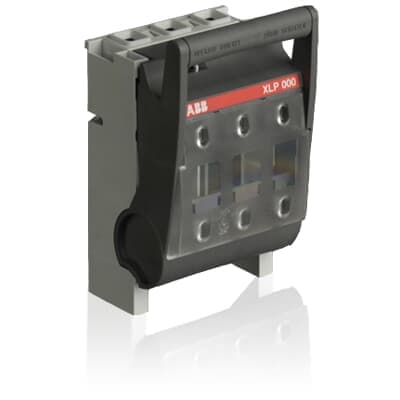

XLP000-6CC in carton
Product ID:74214
Updated: 2026/4/3
Key Features
- 1Meet IEC60947-3 standards for reliable and compliant operation. 2、Utilize a quick-make operation device for effortless and fast setup. 3、Integrate IP20 cable termination and IP30 degree of robust protection. 4、Replace similar market types seamlessly for easy upgrade compatibility. 5、Enhance safety with compact add-on Electronic Fuse Monitoring (EFM).
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP30 | Product Net Width | 95 mm |
| Product Net Height | 160 mm | Product Net Depth / Length | 82 mm |
| Product Net Weight | 0.49 kg | Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
| Fuse Size | NH000 NH00C | Fuse System | DIN |
| Handle Type | Front cover 3P | Mounting Type | Baseplate |
| Number of Poles | 3 | Power Loss | at Rated Load 1.4 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 100 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 50 A | Rated Operational Current AC-22B (Ie) | (500 V) 100 A |
| Rated Operational Current AC-23B (Ie) | (400V) 80 A | Rated Operational Voltage | 400 V AC 500 V AC 690 V AC |
| Rated Voltage (Ur) | 400 V AC 500 V AC 690 V AC | Special Functions | Not Included |
| Standards | IEC60947-3 GB/T14048.3 | Terminal Type | Cable Clamp |
| Object Classification Code | S | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SEP201428R0002 |
Specifications may be subject to change without notice
