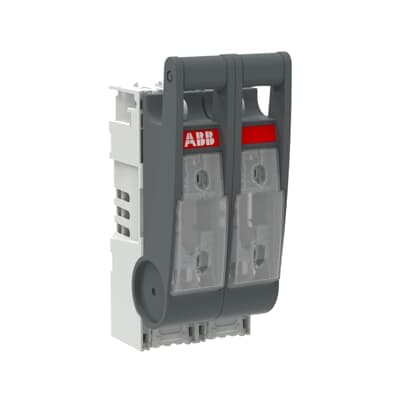

XLP00-2P
Product ID:86889
Updated: 2026/4/3
Key Features
- 1Feature a compact design for NH 00 fuses up to 100 A. 2、Ensure reliable performance across diverse operational conditions. 3、Provide robust protection with 8 kV impulse and 50 kA short-circuit ratings. 4、Include integrated cable clamps and snap-on DIN rail mounting. 5、Suit UPS, telecom, and smaller AC/DC distribution panels.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP30 | Product Net Width | 80 mm |
| Product Net Height | 88 mm | Product Net Depth / Length | 185 mm |
| Product Net Weight | 0.53 kg | Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
| Fuse Size | NH00 NH000 | Fuse System | DIN |
| Handle Type | Front cover 2P | Mounting Type | Baseplate |
| Number of Poles | 2P | Power Loss | at Rated Load 3.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 160 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 125 A | Rated Operational Current AC-22B (Ie) | (500 V) 160 A |
| Rated Operational Current DC-22B | (220 V) 160 A | Rated Operational Voltage | 220 V DC 500 V AC 690 V AC |
| Rated Voltage (Ur) | 220 V DC 500 V AC 690 V AC | Special Functions | Not Included |
| Standards | IEC60947-3 GB/T14048.3 | Terminal Type | Lug terminals |
| Object Classification Code | S | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SEP600114R0001 |
Specifications may be subject to change without notice
