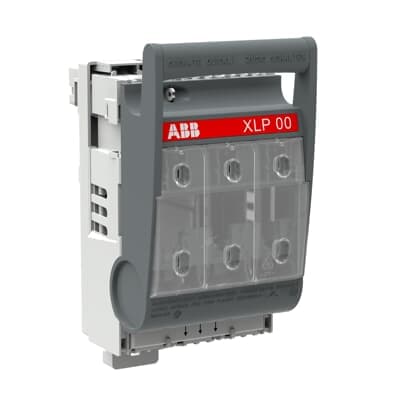

XLP00-A60/60-B-below
Product ID:75320
Updated: 2026/4/3
Key Features
- 1Handle high 160A current demands efficiently. 2、Ensure safety with a robust IP30 protection rating. 3、Simplify installation with the included A60/60 adapter. 4、Provide secure connections using the cable clamp system. 5、Achieve versatile application in various electrical setups.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP30 | Product Net Width | 105 mm |
| Product Net Height | 206 mm | Product Net Depth / Length | 126 mm |
| Product Net Weight | 0.95 kg | Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
| Fuse Size | NH00 NH000 | Fuse System | DIN |
| Handle Type | Front cover 3P | Mounting Type | 60mm Busbar System |
| Number of Poles | 3 | Power Loss | at Rated Load 3.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 160 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 125 A | Rated Operational Current AC-22B (Ie) | (500 V) 160 A (800 V) 63 A (1000 V) 125 A |
| Rated Operational Current AC-23B (Ie) | (400V) 125 A | Rated Operational Voltage | 400 V AC 500 V AC 690 V AC 800 V AC 1000 V AC |
| Rated Voltage (Ur) | 400 V AC 500 V AC 690 V AC 800 V AC 1000 V AC | Special Functions | Not Included |
| Standards | IEC60947-3 GB/T14048.3 | Terminal Type | Lug terminals |
| Object Classification Code | S | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3601032 |
| Manufacturer ID | 1SEP101916R0002 |
Specifications may be subject to change without notice
