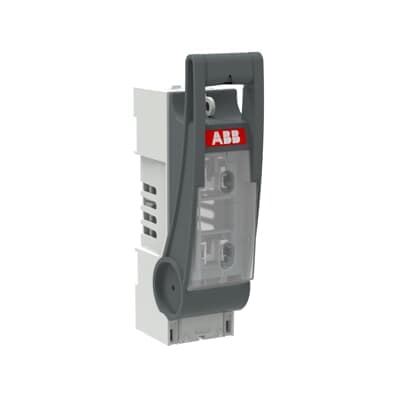

XLP1-1P
Product ID:86459
Updated: 2026/4/3
Key Features
- 1Manage high currents efficiently with a 250A rating. 2、Operate safely using a compact design with integrated IP30 protection. 3、Install easily with included 2xM10x20 bolts. 4、Ensure robust performance via an 8kV impulse withstand voltage. 5、Deploy ideally for UPS, telecom supplies, and distribution panels.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP30 | Product Net Width | 70 mm |
| Product Net Height | 117 mm | Product Net Depth / Length | 269 mm |
| Product Net Weight | 0.7 kg | Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
| Fuse Size | NH1 | Fuse System | DIN |
| Handle Type | Front cover 1P | Mounting Type | Baseplate |
| Number of Poles | 1P | Power Loss | at Rated Load 7.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 250 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 200 A | Rated Operational Current AC-22B (Ie) | (500 V) 250 A |
| Rated Operational Current DC-22B | (220 V) 250 A | Rated Operational Voltage | 220 V DC 500 V AC 690 V AC |
| Rated Voltage (Ur) | 220 V DC 500 V AC 690 V AC | Special Functions | Not Included |
| Standards | IEC60947-3 GB/T14048.3 | Terminal Type | Lug terminals |
| Object Classification Code | S | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SEP600116R0001 |
