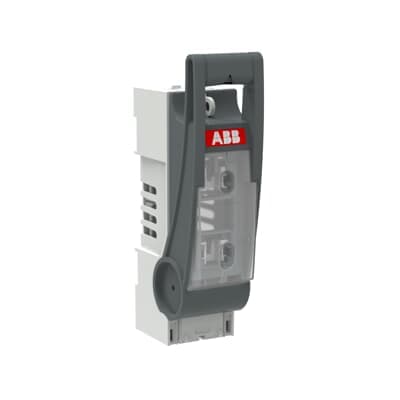

XLP1-1P-2BC
Product ID:86177
Updated: 2026/4/3
Key Features
- 1Handle high currents up to 250 A for robust power management. 2、Simplify installations with integrated 2 bridge clamps for direct connections. 3、Ensure durability with sturdy construction and IP30 front protection. 4、Fit versatile applications including UPS and telecom power supplies. 5、Achieve reliable performance with 8 kV impulse withstand voltage.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP30 | Product Net Width | 70 mm |
| Product Net Height | 117 mm | Product Net Depth / Length | 269 mm |
| Product Net Weight | 0.82 kg | Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
| Fuse Size | NH1 | Fuse System | DIN |
| Handle Type | Front cover 1P | Mounting Type | Baseplate |
| Number of Poles | 1P | Power Loss | at Rated Load 7.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 250 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 200 A | Rated Operational Current AC-22B (Ie) | (500 V) 250 A |
| Rated Operational Current DC-22B | (220 V) 250 A | Rated Operational Voltage | 220 V DC 500 V AC 690 V AC |
| Rated Voltage (Ur) | 220 V DC 500 V AC 690 V AC | Special Functions | Not Included |
| Standards | IEC60947-3 GB/T14048.3 | Terminal Type | Cable Clamp |
| Object Classification Code | S | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Norway) | 1687810 |
| E-Number (Sweden) | 3171961 | Manufacturer ID | 1SEP600116R0002 |
Specifications may be subject to change without notice
