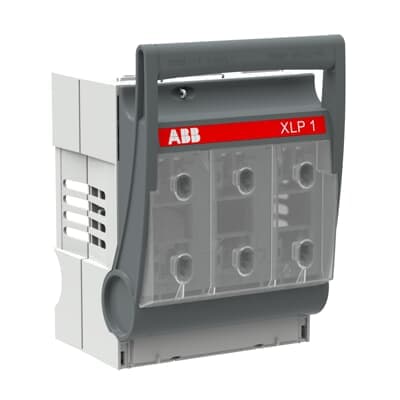

XLP1-A40/120-A-3BC-above
Product ID:75800
Updated: 2026/4/3
Key Features
- 1Handle 250A rated current reliably. 2、Install easily with included A40/120 adapter and 3 Bridge Clamps. 3、Fit compact spaces measuring 185x270x196 mm. 4、Ensure safety per IEC 60947-1 standards for dielectric and short-circuit protection. 5、Connect flexibly with various cable terminals and Snap-On accessories.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP30 | Product Net Width | 185 mm |
| Product Net Height | 270 mm | Product Net Depth / Length | 196 mm |
| Product Net Weight | 2.8 kg | Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
| Fuse Size | NH1 | Fuse System | DIN |
| Fuse Type | NH | Handle Type | Front cover 3P |
| Mounting Type | 40mm Busbar System | Number of Poles | 3 |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 250 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 200 A | Rated Operational Current AC-22B (Ie) | (500 V) 250 A |
| Rated Operational Voltage | 500 V AC 690 V AC | Rated Voltage (Ur) | 500 V AC 690 V AC |
| Special Functions | Not Included | Standards | IEC60947-3 |
| Terminal Type | Cable Clamp | Object Classification Code | S |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SEP101912R0002 |
Specifications may be subject to change without notice
