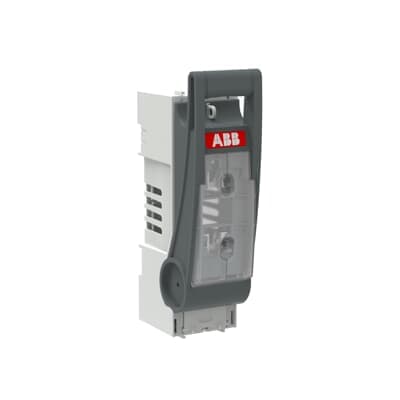

XLP2-1P
Product ID:86599
Updated: 2026/4/3
Key Features
- 1Ensure high-performance protection in electrical distribution systems. 2、Utilize a 1-pole configuration for precise circuit control. 3、Handle robust applications with a 400A current rating. 4、Enhance safety with IP30 protection against foreign objects. 5、Simplify installation using compact 80x129x289 mm dimensions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP30 | Product Net Width | 80 mm |
| Product Net Height | 129 mm | Product Net Depth / Length | 289 mm |
| Product Net Weight | 1.06 kg | Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
| Fuse Size | NH2 | Fuse System | DIN |
| Handle Type | Front cover 1P | Mounting Type | Baseplate |
| Number of Poles | 1P | Power Loss | at Rated Load 13 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 400 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 315 A | Rated Operational Current AC-22B (Ie) | (500 V) 400 A |
| Rated Operational Current DC-22B | (220 V) 400 A | Rated Operational Voltage | 220 V DC 500 V AC 690 V AC |
| Rated Voltage (Ur) | 220 V DC 500 V AC 690 V AC | Special Functions | Not Included |
| Standards | IEC60947-3 GB/T14048.3 | Terminal Type | Lug terminals |
| Object Classification Code | S | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Sweden) | 3171963 |
| Manufacturer ID | 1SEP600122R0001 |
Specifications may be subject to change without notice
