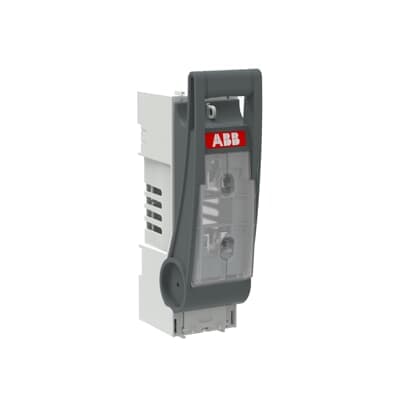

XLP2-1P-2BC
Product ID:71304
Updated: 2026/4/3
Key Features
- 1Handle high currents up to 400A for robust distribution. 2、Secure cables easily with two integrated bridge clamps. 3、Ensure reliable operation with IEC 60529 IP30 protection. 4、Install efficiently using the compact, 1.23 kg design. 5、Meet environmental standards per EU Directive 2011/65/EU.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP30 | Product Net Width | 80 mm |
| Product Net Height | 129 mm | Product Net Depth / Length | 289 mm |
| Product Net Weight | 1.23 kg | Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
| Fuse Size | NH2 | Fuse System | DIN |
| Handle Type | Front cover 1P | Mounting Type | Baseplate |
| Number of Poles | 1P | Power Loss | at Rated Load 13 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 400 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 315 A | Rated Operational Current AC-22B (Ie) | (500 V) 400 A |
| Rated Operational Current DC-22B | (220 V) 400 A | Rated Operational Voltage | 220 V DC 500 V AC 690 V AC |
| Rated Voltage (Ur) | 220 V DC 500 V AC 690 V AC | Special Functions | Not Included |
| Standards | IEC60947-3 GB/T14048.3 | Terminal Type | Cable Clamp |
| Object Classification Code | S | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Norway) | 1687819 |
| E-Number (Sweden) | 3171964 | Manufacturer ID | 1SEP600122R0002 |
Specifications may be subject to change without notice
