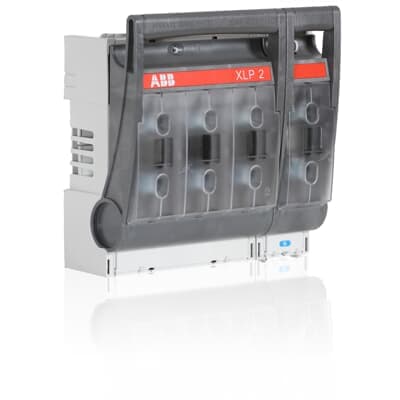

XLP2-4P-8BC
Product ID:84331
Updated: 2026/7/14
Key Features
- 1Ensure reliable operation in electrical systems.
- 2Comply with EU Directive 2011/65/EU and Amendment 2015/863.
- 3Install easily with compact 290 mm x 129 mm x 289 mm dimensions.
- 4Protect power supply networks with switching neutral capability.
- 5Achieve long-lasting durability with V-0 plastic materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP30 | Product Net Width | 290 mm |
| Product Net Height | 129 mm | Product Net Depth / Length | 289 mm |
| Product Net Weight | 4.56 kg | Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
| Fuse Size | NH2 | Fuse System | DIN |
| Handle Type | Front cover 4P | Mounting Type | Baseplate |
| Number of Poles | 4P | Power Loss | at Rated Load 13 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 400 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-22B (Ie) | (500 V) 400 A | Rated Operational Voltage | 500 V AC |
| Rated Voltage (Ur) | 500 V AC | Special Functions | Not Included |
| Standards | IEC60947-3 GB/T14048.3 | Terminal Type | Cable Clamp |
| Object Classification Code | S | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Norway) | 1687823 |
| E-Number (Sweden) | 3171973 | Manufacturer ID | 1SEP600124R0002 |
Specifications may be subject to change without notice
