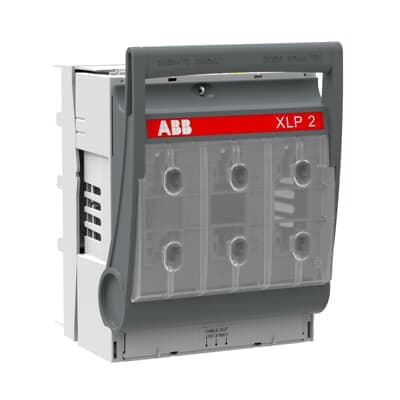

XLP2-A60/120-B-below
Product ID:85641
Updated: 2026/4/3
Key Features
- 1Deliver reliable operation with a 400A rated current. 2、Ensure enhanced protection with IP30 rating from the front. 3、Withstand 8kV impulse voltage on the main circuit. 4、Simplify installation using a compact 210x290x210 mm design. 5、Meet compliance with IEC60947-3 and EU RoHS directives.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP30 | Product Net Width | 210 mm |
| Product Net Height | 290 mm | Product Net Depth / Length | 210 mm |
| Product Net Weight | 4.6 kg | Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
| Fuse Size | NH2 | Fuse System | DIN |
| Handle Type | Front cover 3P | Mounting Type | 60mm Busbar System |
| Number of Poles | 3P | Power Loss | at Rated Load 13 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 400 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 315 A | Rated Operational Current AC-22B (Ie) | (500 V) 400 A |
| Rated Operational Voltage | 500 V AC 690 V AC | Rated Voltage (Ur) | 500 V AC 690 V AC |
| Special Functions | Not Included | Standards | IEC60947-3 GB/T14048.3 |
| Terminal Type | Lug terminals | Object Classification Code | S |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601068 | Manufacturer ID | 1SEP102286R0001 |
Specifications may be subject to change without notice
