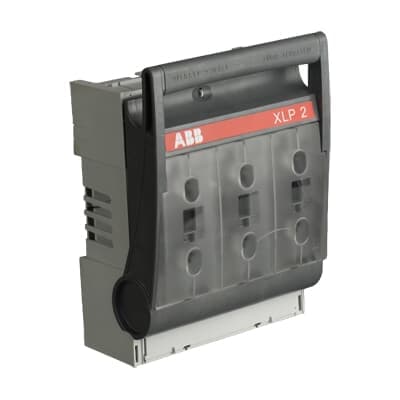

XLP2 S&J -6M12
Product ID:74109
Updated: 2026/4/3
Key Features
- 1Ensure high safety with IP30 front protection in the closed position. 2、Switch rated currents from 100A to 630A with a robust, user-friendly design. 3、Select from 1 to 4 pole versions for versatile application needs. 4、Meet international standards tested per EN/IEC 60947-3. 5、Simplify installation using plug-in connectors and busbar mounts.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP30 | Product Net Width | 210 mm |
| Product Net Height | 290 mm | Product Net Depth / Length | 130 mm |
| Product Net Weight | 2.8 kg | Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
| Fuse Size | NH2 | Fuse System | DIN |
| Handle Type | Fuse holder 3P | Mounting Type | Baseplate |
| Number of Poles | 3 | Power Loss | at Rated Load 13 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 400 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 315 A | Rated Operational Current AC-22B (Ie) | (500 V) 400 A (800 V) 400 A |
| Rated Operational Voltage | 500 V AC 690 V AC | Rated Voltage (Ur) | 500 V AC 690 V AC |
| Special Functions | Not Included | Standards | IEC60947-3 GB/T14048.3 |
| Terminal Type | Lug terminals | Object Classification Code | S |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SEP101892R1004 |
Specifications may be subject to change without notice
