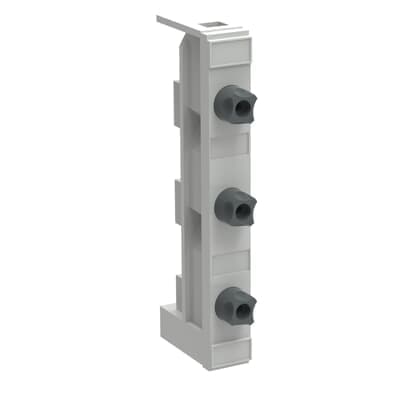

XLPD0-FB-E18/27-3P
Product ID:83969
Updated: 2026/7/14
Key Features
- 1Mount quickly and tool-free on busbars.
- 2Handle 63A rated current and 400V AC voltage.
- 3Integrate a comprehensive surge protection system.
- 4Ensure compatibility with Neozed and Diozed fuses.
- 5Rely on robust 6 kV impulse withstand voltage construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 27 mm | Product Net Height | 35 mm |
| Product Net Depth / Length | 200 mm | Product Net Weight | 0.1 kg |
| Device Type Manager (DTM) | Fusebase | Electronic Fuse Monitoring | No |
| Fuse Size | D02 | Fuse System | Neozed |
| Mounting Type | 60mm Busbar System | Number of Poles | 3P |
| Power Loss | at Rated Load 5.9 W | Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms |
| Rated Current (In) | 63 A | Rated Frequency (f) | Main Circuit 50 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV | Rated Operational Voltage | 400 V AC |
| Rated Voltage (Ur) | 400 V AC | Special Functions | Not Included |
| Standards | IEC60947-3 | Terminal Type | Main Circuit: Bars |
| Utilization Category | Connecting and disconnecting under no-load conditions (AC-20) | Object Classification Code | X |
| ETIM 8 | EC001644 - D0-system fuse base | ETIM 9 | EC001644 - D0-system fuse base |
| eClass | V11.1 : 27142120 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SEP622350R0001 |
Specifications may be subject to change without notice
