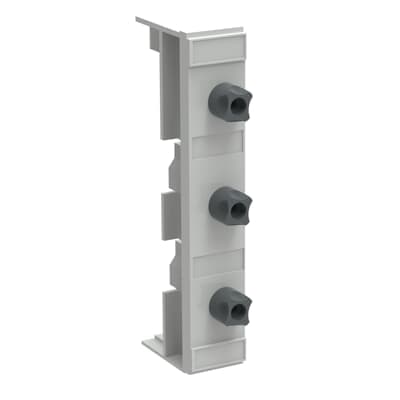

XLPD0-FB-E18/36-3P
Product ID:84167
Updated: 2026/4/3
Key Features
- 1Meet stringent IEC60947-3 standards for isolation, performance, and safety. 2、Enable fast and tool-free installation on a 60mm Busbar System. 3、Benefit from integrated shock protection and comprehensive safety features. 4、Ensure compatibility with Neozed (D02) and D01 bus-mounting fuse bases. 5、Add optional Electronic Fuse Monitoring (EFM) for remote signals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 36 mm | Product Net Height | 35 mm |
| Product Net Depth / Length | 200 mm | Product Net Weight | 0.2 kg |
| Device Type Manager (DTM) | Fusebase | Electronic Fuse Monitoring | No |
| Fuse Size | D02 | Fuse System | Neozed |
| Mounting Type | 60mm Busbar System | Number of Poles | 3P |
| Power Loss | at Rated Load 5.9 W | Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms |
| Rated Current (In) | 63 A | Rated Frequency (f) | Main Circuit 50 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV | Rated Operational Voltage | 400 V AC |
| Rated Voltage (Ur) | 400 V AC | Special Functions | Not Included |
| Standards | IEC60947-3 | Terminal Type | Main Circuit: Bars |
| Utilization Category | Connecting and disconnecting under no-load conditions (AC-20) | Object Classification Code | X |
| ETIM 8 | EC001644 - D0-system fuse base | ETIM 9 | EC001644 - D0-system fuse base |
| eClass | V11.1 : 27142120 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SEP622351R0001 |
Specifications may be subject to change without notice
