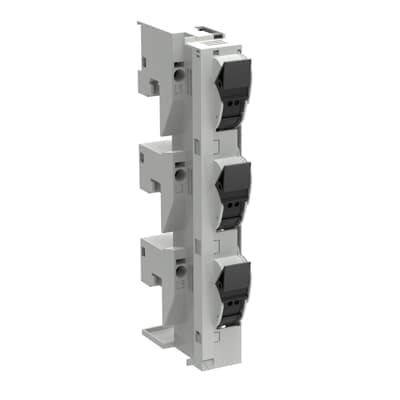

XLPD0-FS-1038-3P
Product ID:85263
Updated: 2026/4/3
Key Features
- 1Ensure secure and reliable electrical connections in industrial settings. 2、Handle demanding applications with a 690V voltage rating. 3、Utilize a versatile 3-pole configuration for various systems. 4、Install easily with a space-efficient cylindrical design. 5、Rely on ABB's renowned quality for durable performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 27 mm | Product Net Height | 104 mm |
| Product Net Depth / Length | 200 mm | Product Net Weight | 0.2 kg |
| Device Type Manager (DTM) | Fusebase | Electronic Fuse Monitoring | No |
| Fuse Size | 10x38 | Fuse System | NFC |
| Handle Type | Fuse holder 3P | Mounting Type | 60mm Busbar System |
| Number of Poles | 3P | Power Loss | at Rated Load 1 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 32 A |
| Rated Frequency (f) | Main Circuit 50 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Operational Current AC-21B (Ie) | (500 V) 32 A (690 V) 32 A | Rated Operational Voltage | 500 V AC 690 V AC |
| Rated Voltage (Ur) | 500 V AC 690 V AC | Special Functions | Not Included |
| Standards | IEC60947-3 | Terminal Type | Main Circuit: Bars |
| Object Classification Code | X | ETIM 8 | EC002705 - Holder for cylindrical fuse |
| ETIM 9 | EC002705 - Holder for cylindrical fuse | eClass | V11.1 : 27142121 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SEP622346R0001 |
Specifications may be subject to change without notice
