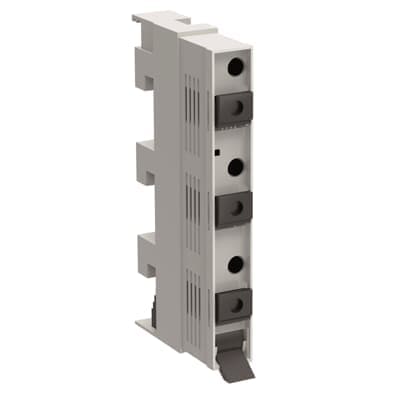

XLPD0-FS-E18-3P
Product ID:85255
Updated: 2026/4/3
Key Features
- 1Install quickly and easily without any tools. 2、Ensure comprehensive shock protection with a strip cover. 3、Handle high operational currents up to 63 A. 4、Use with fuse links of size D01 and D02. 5、Secure with padlock in OFF and seal in ON position.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 27 mm | Product Net Height | 80 mm |
| Product Net Depth / Length | 200 mm | Product Net Weight | 0.3 kg |
| Device Type Manager (DTM) | Fusebase | Electronic Fuse Monitoring | No |
| Fuse Size | D01 D02 | Fuse System | Neozed |
| Handle Type | Handle Switch 3P | Mounting Type | 60mm Busbar System |
| Number of Poles | 3P | Power Loss | at Rated Load 7 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 63 A |
| Rated Frequency (f) | Main Circuit 50 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Operational Current AC-22B (Ie) | (400 V) 63 A | Rated Operational Voltage | 400 V AC |
| Rated Voltage (Ur) | 400 V AC | Special Functions | Not Included |
| Standards | IEC60947-3 | Terminal Type | Main Circuit: Bars |
| Object Classification Code | S | ETIM 8 | EC000277 - D0-system switch disconnector |
| ETIM 9 | EC000277 - D0-system switch disconnector | eClass | V11.1 : 27142110 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SEP622349R0001 |
Specifications may be subject to change without notice
