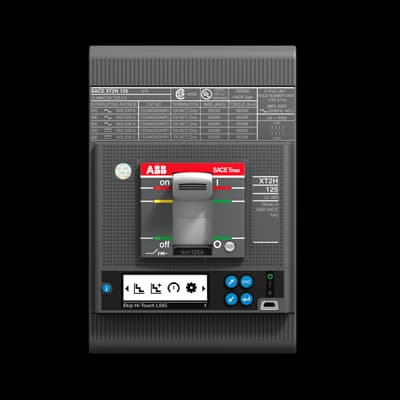

XT2H 125 EkipM TouchLRIU(MPCB)40 3pFF UL
Product ID:70038
Updated: 2026/7/14
Key Features
- 1Utilize advanced EkipM Touch LRIU technology for reliable protection.
- 2Achieve a high interrupting rating of 25 kA at 600 V AC.
- 3Install a compact design with front terminals to save space.
- 4Meet UL and CSA standards for full regulatory compliance.
- 5Customize easily with a modular structure for future upgrades.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 9AKK108467A6707 | Product Net Width | 90 mm |
| Product Net Height | 130 mm | Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 9.7 kg | Circuit Breaker Type to be Associated | Motor Protection |
| Product Main Type | SACE Tmax XT | Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker | Suitable for Product Class | SACE Tmax XT |
| Version | F | CAD Dimensional Drawing | 1SDH001295R0155 |
| Current Type | AC | Mechanical Durability | 240 cycles per hour 25000 cycle |
| Number of Poles | 3 | Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 0.7 W | Rated Current (In) | 40 A |
| Rated Frequency (f) | 50 / 60 Hz | Rated Operational Voltage | 600 V AC 500 V DC |
| Rated Uninterrupted Current (Iu) | 125 A | Release | Ekip M Touch LRIU |
| Release Type | EL | Short-Circuit Performance Level | H |
| Standards | UL489 | Sub-type | XT2 |
| Terminal Connection Type | Front | Interrupting Rating acc. to UL489 | (240 V AC) 150 kA (480 V AC) 65 kA (600 V AC) 25 kA |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers | UNSPSC | 39121616 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | eClass | V11.1 : 27370409 |
| Manufacturer ID | 1SDA102090R1 |
Specifications may be subject to change without notice
