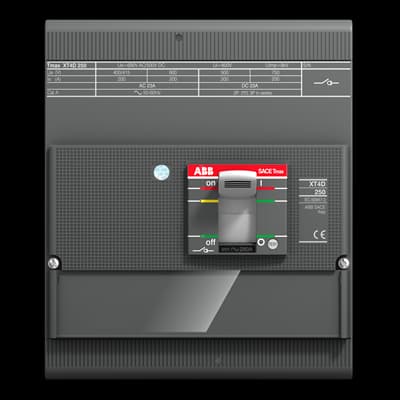

XT4N-D 250 MCS-UL/CSA Im=3000 4p F F
Product ID:70124
Updated: 2026/4/3
Key Features
- 1Achieve reliable short-circuit protection with a 3000A interrupting rating. 2、Meet stringent UL and CSA safety standards for industrial compliance. 3、Manage complex multi-circuit systems via a four-pole configuration. 4、Simplify installation using front bolt terminals with 8 N·m torque. 5、Ensure long-term durability with 120 electrical and 25k mechanical cycles.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 9AKK108467A6707 | Product Net Width | 140 mm |
| Product Net Height | 160 mm | Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.35 kg | Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker | Product Type | Switch Disconnector |
| Suitable for Product Class | SACE Tmax XT | Version | F |
| CAD Dimensional Drawing | 1SDH001295R0677 | Connecting Capacity Main Circuit | Busbar 85..200 mm² |
| Electrical Durability | 120 cycles per hour 8000 cycle | Mechanical Durability | 240 cycles per hour 25000 cycle |
| Number of Poles | 4 | Opening Time | CB with SOR 15 ms CB with UVR 15 ms |
| Order Multiple | 1 piece | Power Loss | at Rated Operating Conditions per Pole 16.4 W |
| Rated Frequency (f) | 50 / 60 Hz | Rated Operational Voltage | 600 V AC 600 V DC |
| Rated Uninterrupted Current (Iu) | 250 A | Rated Voltage (Ur) | 600 V |
| Recommended Screw Driver | Main Circuit M8 | Short-Circuit Performance Level | N |
| Standards | UL489 | Sub-type | XT4 |
| Terminal Connection Type | Front | Terminal Type | Bolt |
| Tightening Torque | 8 N·m | Interrupting Rating acc. to UL489 | (240 V AC) 65 kA (480 V AC) 25 kA (600 V AC) 18 kA (250 V DC) 2 Poles in Series 35 kA (600 V DC) 3 Poles in Series 35 kA |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| IDEA Granular Category Code (IGCC) | 4927 >> Molded case circuit breakers | Object Classification Code | Q |
| UNSPSC | 39121616 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 | Manufacturer ID | 1SDA075621R1 |
