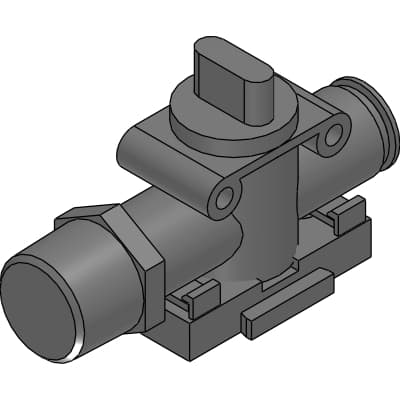

2QV-08S-08S
Product ID:50164
Updated: 2026/7/14
Key Features
- 1Direct side plumbing for easy installation.
- 2One-touch coupling for quick connections.
- 3Holding operation status for reliable performance.
- 4Effective sectional area of 10.2 mm² for efficient fluid flow.
- 5Compatible with φ8 connecting tube diameter for versatile applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve type | 2 : 2 way valve | Port size (P port) - (A port) | 08S-08S : Push-in fitting 8 - Push-in fitting 8 |
| Bracket | 2QV-P1 | P port | 8 |
| A port | 8 | Model No. | QV-08S-08S |
| A | 18mm | B | 19.0mm |
| C | 14.5mm | D | 8.5mm |
| E | 17.5mm | F | 22.0mm |
| G | 4.2mm | H | -mm |
| I | 17mm | J | 26.5mm |
| K | -mm | L | 53.0mm |
| M | -mm | N | 34.5mm |
| O | 18mm | P | 41.5mm |
| Weight | 23g | P-A | 10.2mm^2 |
| A-R | 1.8mm^2 |
Specifications may be subject to change without notice
