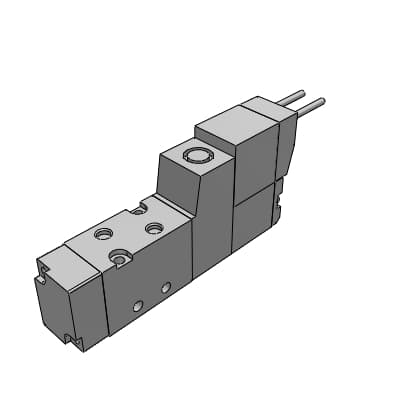

4SA010-M3-3
Product ID:50147
Updated: 2026/7/14
Key Features
- 1Compact design with 10 mm valve width for space-saving applications.
- 2Low wattage design (25 mA at 24 VDC) for energy efficiency.
- 3Versatile electrical connections including grommet lead wire and C/D-type connectors.
- 4Pilot operated soft spool valve for precise control of compressed air.
- 5Quick response time of 3 ms with supply pressure of 0.5 MPa, ideal for fast pneumatic systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | 4SA0 | Solenoid position | 1 : 2-position single |
| Fixed code | 0 | Port size | M3 |
| Manual override | Blank : Non-locking manual override | Electrical connections | Blank : Gromment lead wire (300 mm) |
| Other opitons | Blank : Without mouniting plate | Voltage | 3 : 24 VDC |
Specifications may be subject to change without notice
