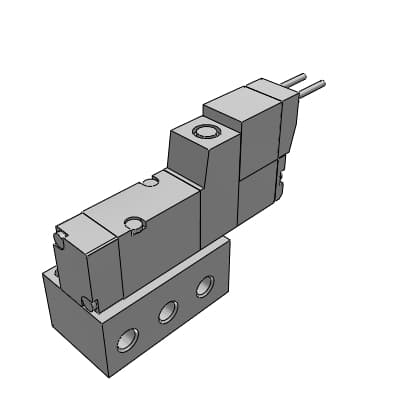

4SB010-M5-3
Product ID:50149
Updated: 2026/7/14
Key Features
- 1Compact design with a width of 10 mm.
- 2High reliability due to aluminum and resin components.
- 3Versatile electric connections including grommet lead wire and C-connector options.
- 4Pilot operated soft spool valve for precise control.
- 5Suitable for compressed air applications with a max working pressure of 0.7 MPa.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | 4SB0 | Solenoid position | 1 : 2-position single |
| Fixed code | 0 | Port size | M5 |
| Manual override | Blank : Non-locking manual override | Electrical connections | Blank : Gromment lead wire (300 mm) |
| Other opitons | Blank : Without mouniting plate | Voltage | 3 : 24 VDC |
Specifications may be subject to change without notice
