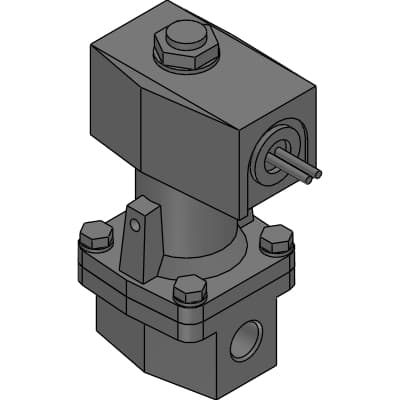

AP11-8A-03A-AC100V
Product ID:50062
Updated: 2026/7/14
Key Features
- 1Engineered for consistent performance in demanding industrial environments.
- 2Pilot-operated type 2-port normally closed solenoid valve ensures precise fluid control.
- 3Suitable for air, water, and oil applications, making it a versatile choice for various industries.
- 4Built with brass body and NBR seal material for long-lasting durability.
- 5Compatible with standard plumbing threads (Rc 1/4) for straightforward integration into existing systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | AP1 | Actuation | 1 : NC (normally closed) type |
| Port size | 8 : 1/4 | Thread type | A : Rc |
| Body/sealant combination | 0 : Brass, Nitrile rubber sealant, Nitrile rubber O-ring, - , Air/water/kerosene/oil (up to 60°C) | Option : Coil housing | 3A : Open frame type lead wire |
| Option : Manual operating device (locking) | Blank : None | Option : Mounting plate | Blank : None |
| Option : Cable gland (marine cable gland) / Conduit (conduit pipe) | Blank : None | Option : Surge suppressor | Blank : None |
| Voltage | AC 100V : 100 VAC 50/60 Hz, 110 VAC 60 HzV | A | -mm |
| B | -mm | C | -mm |
| D | -mm | E | -mm |
| F | -mm | G | Rc 1/4mm |
| H | -mm | J | -mm |
| K | -mm | L | -mm |
| M | -mm | N | -mm |
| P | -mm | Q | -mm |
Specifications may be subject to change without notice
