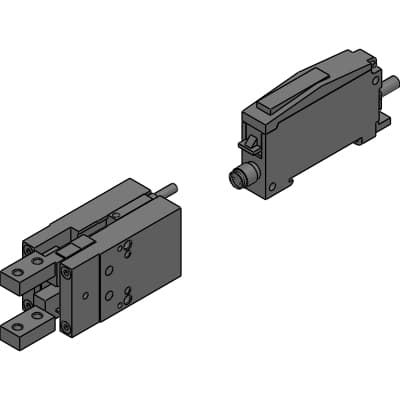

BHA-LN-01CS-05HCS2S
Product ID:50503
Updated: 2026/7/14
Key Features
- 1Advanced Length Measuring Sensor: Equipped with a special magnetic sensor for nearly linear output of piston travel distance.
- 2Intermediate Detection: Enables detection of workpiece intermediate gripping, ideal for sorting mixed workpieces and detecting differently shaped parts.
- 3Digital Display: Simplifies inspection with direct digital display of inspection results, eliminating post-processing hassles.
- 4Versatile Compatibility: Compatible with various cylinder bore sizes (φ12, φ16, φ20, φ25) and amplifier configurations (S1PAH, S1PAV).
- 5Enhanced Gripping Power: Designed for robust gripping performance, ensuring reliable handling of workpieces in various industrial applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | BHA | Size | 01CS : φ12 |
| Compatible sensor | 05 | Sensor lead wire outlet direction | H : Axial lead wire |
| Sensor lead wire terminal specifications | C : With M8 connector (for amplifier separated) | Amplifier unit output and shape | S2S : Amplifier separate/switch 2 point output (01CS, 03CS compatible) |
| Display | None : There is no indicator (display) | Length (Min-Max) | 15 |
| MIN | 10mm | MAX | 15mm |
Specifications may be subject to change without notice
