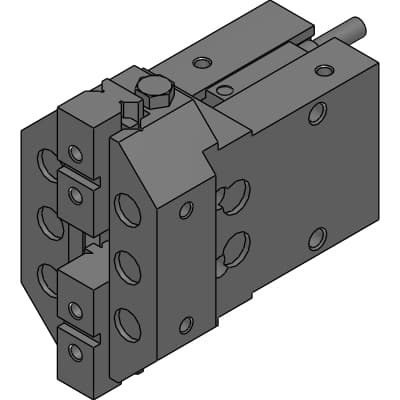

BHE-04CS-T2H-R
Product ID:52100
Updated: 2026/4/3
Key Features
- 1High precision centering with accuracy ±0.05 mm.
- 2High rigidity and durability achieved with high hardness stainless steel.
- 3Open and close stroke adjustment mechanisms available.
- 4Compatible with bore sizes φ12, φ16, φ20, φ25, φ32.
- 5Suitable for various industrial applications requiring precise handling.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | BHE | Size | 04CS |
| Bore size | Ø20mm | Option | Blank : Standard |
| Switch model no. | T2: Proximity, 1 color, 2 wire | Lead wire direction | H: Axial |
| Lead wire length | Blank: 1m (standard) | Switch quantity | R: One on open side |
| Length (min-max) | 14mm |
Specifications may be subject to change without notice
