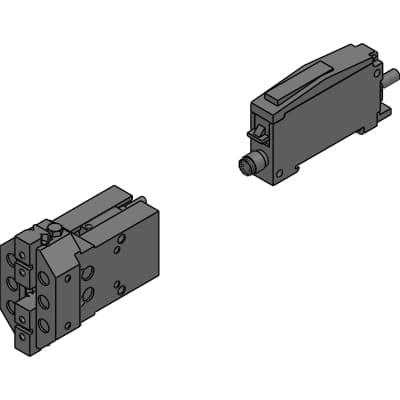

BHE-LN-03CS-05HCS2S
Product ID:52103
Updated: 2026/7/14
Key Features
- 1Precise Length Measurement: The BHE-LN-03CS-05HCS2S includes a special magnetic sensor for nearly linear output, enabling intermediate detection and length measurement.
- 2Versatile Workpiece Handling: Suitable for sorting mixed workpieces, detecting differently shaped workpieces, and abnormal gripping detection.
- 3Digital Display for Easy Inspection: Direct digital display of inspection results simplifies post-processing tasks.
- 4Multiple Cylinder Bore Sizes: Available in φ12, φ16, φ20, and φ25 cylinder bore sizes to fit various applications.
- 53D CAD Model Availability: Downloadable in multiple CAD formats including SOLIDWORKS, Inventor, and STEP for easy integration into your design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | BHE | Size | 03CS |
| Size (cylinder bore size) | Ø16mm | Compatible sensor | 5 |
| Sensor lead wire outlet direction | H : Axial lead wire | Sensor lead wire terminal specifications | C : With M8 connector (for amplifier separated) |
| Amplifier unit output and shape | S2S : Amplifier separate/switch 2 point output (01CS, 03CS compatible) | Display | None : There is no indicator (display) |
| Length (min-max) | 10mm |
Specifications may be subject to change without notice
