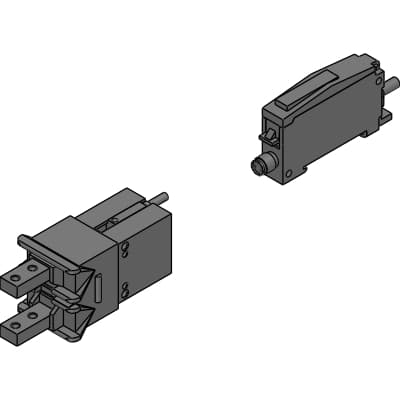

BHG-03CS-05HCS2S
Product ID:53034
Updated: 2026/7/14
Key Features
- 1High precision and smooth operation with cross roller guide.
- 2Compact design withstanding large moment loads.
- 3Improved environmental resistance with rubber cover.
- 4Two proximity switches for open/close confirmation.
- 5Versatile options for double and single acting configurations.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | BHG | Size | 03CS |
| Cylinder bore size | Ø16mm | Compatible sensor | 5 |
| Sensor lead wire outlet direction | H : Axial lead wire | Sensor lead wire terminal specifications | C : With M8 connector (for amplifier separated) |
| Amplifier unit output and shape | S2S : Amplifier separate/switch 2 point output (01CS, 03CS compatible) | Display | None : There is no indicator (display) |
| Length (min-max) | 18mm |
Specifications may be subject to change without notice
