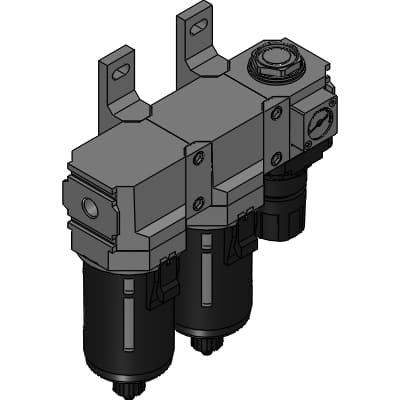

C2030-8-W
Product ID:50338
Updated: 2026/7/14
Key Features
- 1The C2030-8-W offers high flow rates, ensuring efficient operation in various industrial settings.
- 2Its compact modular design minimizes installation space and enhances system integration.
- 3Built with hybrid materials (aluminum die cast and resin), it provides strength and reduces weight by 50%.
- 4The original chemical fiber structure reduces clogging, extending the element's life and ensuring long-term reliability.
- 5The pressure gauge is embedded for space-saving and enhanced safety, reducing the risk of personnel injury.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | C2030 | Filter | F2000 |
| Oil mist filter | M2000 | Lubricator | R2000 |
| Port size | 8 : 1/4 | Port thread type | Blank : Rc thread |
| Drainage | Blank :With manual drain cock | Bowl material | Blank : Polycarbonate bowl |
| Element | Blank : 5μm | Diff press detect | Blank : Without differential pressure detection port |
| Pressure range | Blank : 0.05 to 0.85 MPa | Relief | Blank : With relief mechanism |
| Pressure gauge | Blank : Standard pressure gauge (G401-W) | Flow direction | Blank : Standard flow (left to right) |
| Distributor | Blank : Without assembled component | Pressure switch | Blank : Without pressure switch |
| Shut-off / lockout valve | Blank : Without valve | Displayed unit | Blank : MPa display (Rc thread), psi display (NPT thread), bar display (G thread) |
| Piping adaptor set (included) | Blank : Not attached | Adaptor thread type | Blank : None |
| Attachment gauge type | Blank : Not attached |
Specifications may be subject to change without notice
