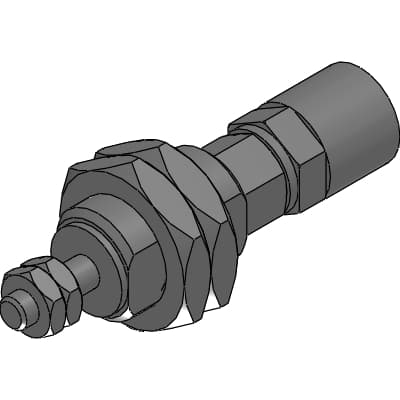

CAT-N-15-5-M
Product ID:50819
Updated: 2026/7/14
Key Features
- 1Ultra-compact size with ø6 to ø15 inner diameter.
- 2Easy installation with threaded outer diameter.
- 3Two types of mounting: recessed and panel mounting.
- 4Selectable end shape: male thread and non-threaded.
- 5Single-acting push method with one air pipe required.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | CAT | Bore size | 15mm |
| Mounting | N: Panel mount | Stroke | 5mm |
| Piston rod end | M: Male thread | Stroke position | 0mm |
| Product information | Product information | B | 8.0mm |
| C | 12mm | D | 13.5mm |
| FA | 30mm | J | 21.0mm |
| G | 18mm | H | 20.8mm |
| KK | M5 | LL | 24.0mm |
| MB | M24 x 1.5 | MM | 6mm |
| N | 6mm | R | 34.6mm |
| RT | 5mm | S | 42.8mm |
| ST | 3.0mm | U | 22.0mm |
| UT | 5.5mm | X | 37.5mm |
Specifications may be subject to change without notice
