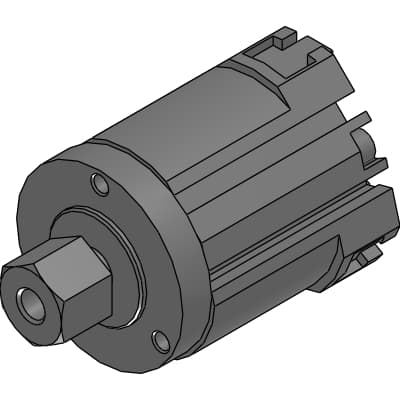

CKL2-32CS-FC
Product ID:52712
Updated: 2026/7/14
Key Features
- 1High precision operating stroke lengths (5, 6, 8, 10mm).
- 2Robust gripping power (50 to 105 N) for secure handling.
- 3Compact design with dimensions tailored for specific applications.
- 4Durable construction using aluminum alloy and stainless steel materials.
- 5Easy to integrate into existing systems due to standardized mounting options.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | CKL2 | Size | 32CS |
| Position | 0.0mm | A | 52mm |
| AA' | 3-M5 X 0.8 depth 10 | B | 34mm |
| C | MAX93/MIN88 | D | 67.0mm |
| E | 2.0mm | F | 16mm |
| H | M8 X 1.25 depth 12 | I | 19mm |
| J | 44mm | K | 12.0mm |
| L | 8mm | M | 18mm |
| N | 7.5mm | O | 3mm |
| P | 3mm | Q | 24mm |
| R | 44mm | S | 10mm |
| T | 4.0mm | U | 3 x 2-M4 x 0.7 depth 8 |
| V | 4.0mm | W | 14.5mm |
| X | 8mm | Y | 14mm |
| Z | 5.0mm |
Specifications may be subject to change without notice
