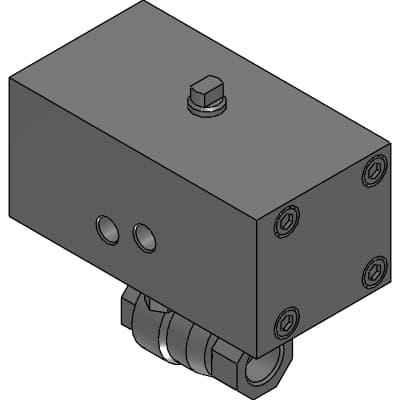

CSB-10-H
Product ID:52448
Updated: 2026/7/14
Key Features
- 1High torque output up to 18 N•m for efficient operation.
- 2Precise index accuracy of ±30 seconds for reliable positioning.
- 3Robust motor insulation class F withstanding 1500 VAC for 1 minute.
- 4Wide operating ambient temperature range from 0 to 45°C.
- 5Durable construction with a weight range of 4.7 to 44 kg.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | CSB : Standard bore | Actuator | Blank : Double acting |
| Port size | 10 : Rc3/8 | Body/seat material | H : Copper alloy - reinforced PTFE |
| A | 50mm | B | 24mm |
| C | 91mm | D | 106mm |
| E | Rc3/8mm |
Specifications may be subject to change without notice
