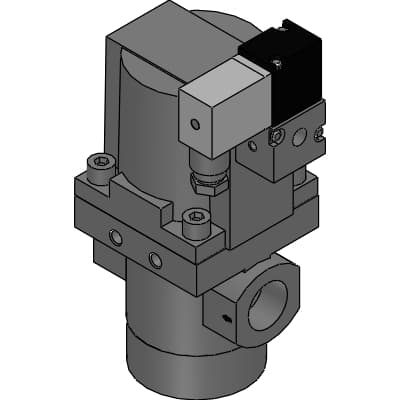

CVSE3-20A-35-02G-1
Product ID:52372
Updated: 2026/7/14
Key Features
- 1Designed to withstand foreign particles, ensuring reliable operation in harsh environments.
- 2Supports working pressures up to 3.5 MPa and 7.0 MPa for versatile applications.
- 3Allows for efficient coolant control with three ports for precise fluid management.
- 4Reduces wear and damage, enhancing the valve's durability and longevity.
- 5Easy to operate using compressed air, providing a reliable and efficient solution for machine tool coolant control.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | CVSE3 | Port size | 20A: Rc3/4 |
| Working pressure range | 35: 0 to 3.5 MPa | Body/sealant combination | 0: Standard, cast iron (plating) body, nitrile rubber sealant |
| Coil | 2G: Option, DIN terminal box (Pg9) | Option: Surge suppresor | Blank: No option |
| Option: Solenoid valve on the top | Blank: None | Option: Mounting plate | Blank: No options |
| Assembly direction | Blank: No options | Voltage | 1: 100V AC (50/60Hz), 110V AC (60Hz) |
| Position of Pg9 | — | A | 90mm |
| B | 40mm | C | 52mm |
| CA | -mm | CC | -mm |
| D | 102mm | E | 199mm |
| F | 77mm | G | Rc3/4 |
| H | -mm | J | - |
| K | M8 thread length 10 | L | 79.5mm |
| M | 25mm | N | 64.5mm |
| P | 11 x 15mm | Q | 125mm |
| R | 145mm | S | 35mm |
| T | 3.2mm | U | 62.5mm |
Specifications may be subject to change without notice
