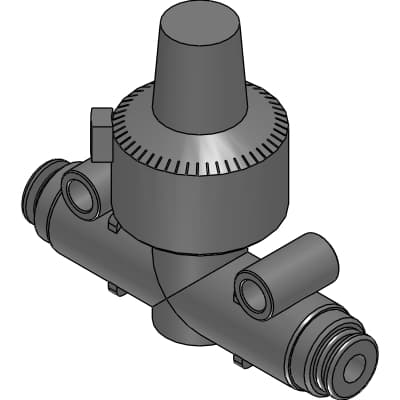

DVL-S-08-H66-240
Product ID:51167
Updated: 2026/7/14
Key Features
- 1High Precision Flow Control: The DVL-S-08-H66-240 features a built-in rotatory check valve for precise flow rate adjustment.
- 2Easy Numerical Adjustment: The needle rotation speed can be accurately displayed and adjusted using the numeric dial.
- 3Linear Flow Characteristics: The valve ensures linear flow characteristics proportional to the needle rotation speed.
- 4Versatile Mounting Options: The valve can be mounted in various configurations including base-mounting, side-mounting, and panel-mounting.
- 5Compressed Air Compatibility: Suitable for working with compressed air within a temperature range of 5 to 60°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | DVL | Control method (oil removing) | S: Check valve type |
| Body size | 08: 1/4 thread equivalent | Applicable tube O.D. | H66: φ6 |
| Flow rate type | 240: 240 l/min (ANR) | A | 50.0mm |
| B | 22.5mm | C | 13.0mm |
| D | 9.5mm | E | 13.1mm |
| F | 64.0mm | H | 15.0mm |
| J | 19.0mm | K | 41.0mm |
| tube insert length | 18.0mm |
Specifications may be subject to change without notice
