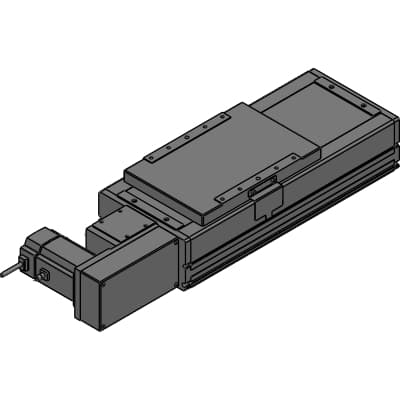

ECV-22-40010-RM8XNNNN
Product ID:53141
Updated: 2026/7/14
Key Features
- 1Low-Dust Generation: Achieves low dust generation with a full cover structure and suction port, ideal for clean delivery environments.
- 2High Rigidity: Equipped with two built-in linear guides for excellent rigidity and stability.
- 3Extensive Motor Mounting: Supports all Field Networks and offers 5 types of motor mounting directions for versatile installation.
- 4Long Stroke Capability: Compatible with long strokes up to 3400mm, not fully supported by ball screw drive.
- 5Easy Maintenance: Includes an optional grease nipple for direct external supply, ensuring smooth maintenance of guides and ball screws.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Body size | 22 : 220 (W) x 138 (H)mm | Lead | 40 : 40 mm |
| Stroke length | 010 : 100 mm | Position of slider | 0mm |
| Motor mounting method | R : Right | Mounting motor specifications | M : MITSUBISHI, Delta Electronics,Inc., SANYO DENKI CO.,LTD. |
| Motor size | 8 : 750 WW | Belt type | X : Standard (rubber) |
| Origin sensor | N : None | Limit sensor | N : None |
| Option 1 | N : Body mounting direction: standard/without grease nipple | Option 2 | N : Without positioning pin hole |
| L | 643mm | A | 150mm |
| M | 1 | N | 6 |
Specifications may be subject to change without notice
