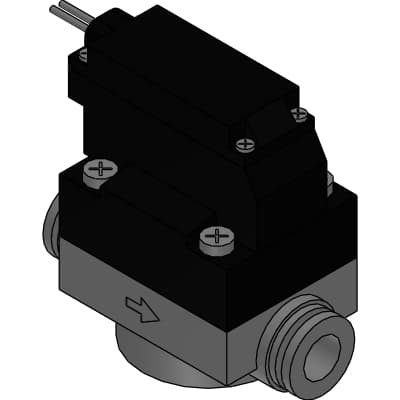

EXA-C12-02C-1
Product ID:51468
Updated: 2026/7/14
Key Features
- 1Low power consumption of 0.6 W, contributing to energy conservation.
- 2Smaller and lighter weight with a resin body, suitable for manifold integration.
- 3Controls large flow rates with a pilot operated diaphragm drive.
- 4Ideal for dental equipment, inspection, jig-related tasks, and environment-friendly systems.
- 5Withstanding pressure up to 1.05 MPa and operating within 0°C to 55°C fluid temperature range.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | EXA | Port size | C12: Ø12 |
| Body/sealant combination | 0: H-NBR, internal exhaust specification | Coil options | 2C: Lead wire(without indicator light and surge suppressor) |
| Option mounting plate | None | Voltage | 1: 100 VAC |
| A | 64mm | B | 32.0mm |
| C | 11.5mm | D | 51mm |
| E | 54.5mm | F | 19.5mm |
Specifications may be subject to change without notice
