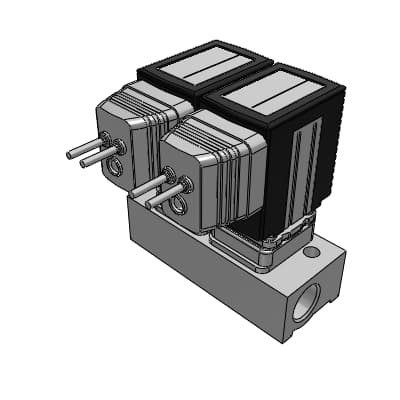

FFBM-3108A202A3A1(0,0,0)
Product ID:51462
Updated: 2026/7/14
Key Features
- 1High precision 2-port manifold for precise fluid control.
- 2Compatible with various fluids and solenoid valves.
- 3Robust design for reliable performance in industrial settings.
- 4Ideal for automatic machinery and automation systems.
- 5Enhances efficiency in manufacturing processes with precise fluid management.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | FFBM | Valve size | 3 : Width 30mm |
| Function | 1 : NC (open when energized)Centralized air supply | Port size | 08 : 1/4 |
| Thread and pressure display unit on nameplate | A : Rc thread, MPa | Orifice diametar | 2 : φ2 |
| Number of stations | 02 : 2 stations | Material (Body, Seal, Treatment, Remarks) | A : Aluminium, NBR, －, Compressed air/dry air |
| Coil Heat Resistant Class | 3 : Class 130 (B) | Coil options | A : Lead wire (300mm) |
| Angle of coil options | 0° | Angle of DIN terminal box | 0° |
| Angle of HP terminal box | 0° | Rated Voltage | 1 : 100 VAC 50/60Hz |
Specifications may be subject to change without notice
