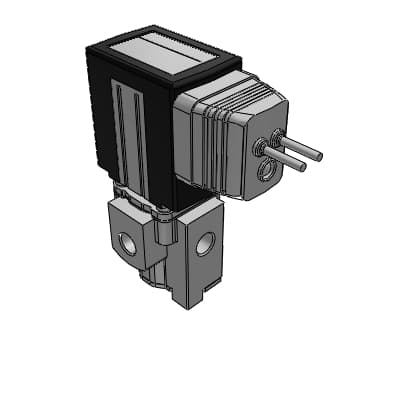

FFG-4108A2A3A1
Product ID:52165
Updated: 2026/7/14
Key Features
- 1Highly durable with coil rectification and countermeasures for wear.
- 2Suitable for dry air at atmospheric dew point of -60°C and inert gases.
- 3Thin design and space-saving, supports manifold configurations.
- 4Available in 2-port and 3-port single unit valves, as well as manifold options.
- 5Includes user's manual, safety precautions, and CAD files for easy integration.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | FFG | Valve size | 4 : Width 35mm |
| Function | 1 : Universal | Port size | 08 : 1/4 |
| Thread and pressure display unit on nameplate | A : Rc thread, MPa | Orifice diametar | 2 : φ2 |
| Material (Body, Seal, Treatment, Remarks) | A : Aluminium, NBR, －, Compressed air/dry air | Coil Heat Resistant Class | 3 : Class 130 (B) |
| Coil options | A : Lead wire (300mm) | Angle of coil options | 0° |
| Angle of DIN terminal box | 0° | Angle of HP terminal box | 0° |
| Rated Voltage | 1 : 100 VAC 50/60Hz | Option | Blank : None |
| Mounting plate direction | Blank : None |
Specifications may be subject to change without notice
