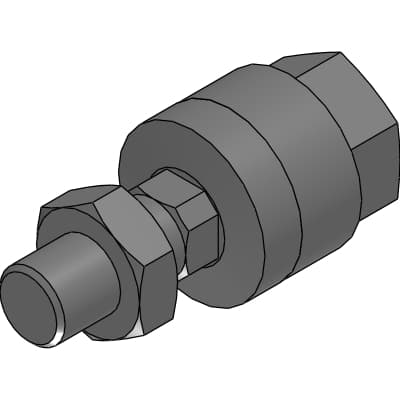

FJ-0-14
Product ID:50754
Updated: 2026/7/14
Key Features
- 1Quick Connection: Easy to connect and disconnect, ensuring efficient setup and teardown.
- 2Smooth Rod Actuation: Eliminates misalignment and parallelism defects, providing smooth rod movement.
- 3Compact Design: Compact and high tensile/compression force permissible, perfect for space-constrained applications.
- 4Dust Cover Included: Comes with a dust cover to protect the joint from debris and contaminants.
- 5Lubricant Filled: Filled with lubricant, reducing the need for external lubrication and extending its lifespan.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | FJ | Mounting | 0: Basic type |
| Nominal thread size | 14 | Nominal port size of thread x pitch | M14x1.5 |
| Applicable model | SCG-40 / SCA2-40 / FCD-32/40-N / SSD-32/40-N / SCM-40 / JSC3-40 | Product information | Product information |
| ORDER | FJ-0-14 | Nominal port size | 14mm |
| Pitch | 1.50mm | A | 68.5mm |
| B | 20mm | C | 22.0mm |
| D | 32.0mm | E | 7.0mm |
| F | 22.0mm | G | 13.0mm |
| H | 27.0mm | J | 14.0mm |
| K | -mm | L | -mm |
| N | 8.0mm | P | 16.5mm |
| Q | -mm | S | -mm |
| R | -mm | Allowable eccentricity | 1.0mm |
| Max. working tension and compression | 5.88kN | Weight | 0.22kg |
Specifications may be subject to change without notice
