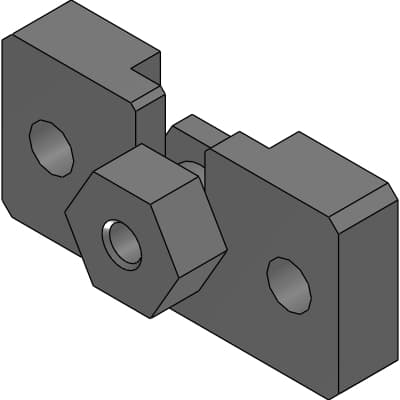

FK-M6
Product ID:52106
Updated: 2026/7/14
Key Features
- 1Quickly set for precise alignment.
- 2Realizes smooth rod movement with minimal defects.
- 3Compatible with M3 to M20 thread sizes.
- 4Made for long-lasting performance in various industrial applications.
- 5Simplified design for hassle-free mounting on cylinders.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | FK | Nominal thread size | M6 |
| Nominal port size of thread x pitch | M6x1.0 | Compatible cylinder | SMD2-20, SSD-16-N |
| Product information | Product information | ORDER | FK-M6 |
| Nominal port size | 6mm | Pitch | 1.00mm |
| A | 13.9mm | B | 12mm |
| C | -mm | D | 10mm |
| E | 3.1mm | F | 2mm |
| G | M6x1.0 | H | 8mm |
| J | 6mm | K | 3mm |
| L | 19mm | M | 16mm |
| N | 9mm | O | 26mm |
| P | 36mm | Q | 4.5mm |
| R | 9.5mm | S | -mm |
Specifications may be subject to change without notice
