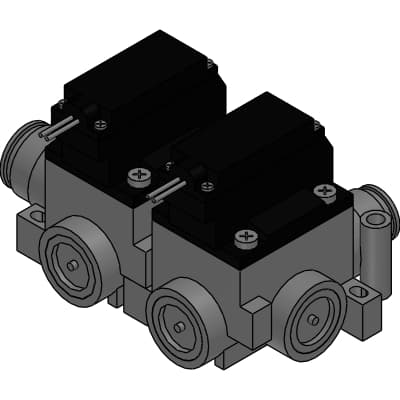

GEXA-C10C12-2-02C-1
Product ID:50069
Updated: 2026/7/14
Key Features
- 1Withstands up to 1.05 MPa water pressure and 0.7 MPa working pressure.
- 2Available in push-in fittings ø6, ø8, ø10, and ø12 for flexible installation.
- 3Internal and external leakage of 2 cm³/min or less ensures efficient operation.
- 4Operates in temperatures from -5°C to 55°C, suitable for various environments.
- 5Compatible with 100 VAC (50/60 Hz), 24 VDC, and 12 VDC, with ±10% voltage fluctuation range.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | GEXA | Port size C | C10: Ø10 |
| Port size A | C12: Ø12 | Station number | 2 station |
| Body/sealant combination | 0: H-NBR, internal exhaust specification | Coil options | 2C: Lead wire(without indicator light and surge suppressor) |
| Voltage | 1: 100 VAC | A | 10mm |
| B | 38mm | C | 12mm |
| D | 44mm |
Specifications may be subject to change without notice
