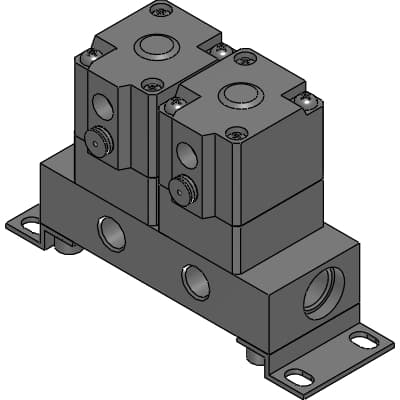

GNAB1-1-2-02-C18
Product ID:51479
Updated: 2026/7/14
Key Features
- 1Lightweight and space-efficient, perfect for tight spaces.
- 2Select from copper alloy, stainless steel, nitrile rubber, and fluoro rubber for various fluid applications.
- 3Integrated fitting for fiber tubes (φ1.8 mm air tube) simplifies air piping connections.
- 4Suitable for high-pressure coolant applications up to 7.0 MPa.
- 5Downloadable in multiple CAD formats including SOLIDWORKS, Inventor, and more for easy integration into your design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | GNAB | Actuation | 1 : NC |
| Working fluid | Blank : General purpose(air/water/gas) | Air supply category | 1 : common supply(port C pressurization), port A vacuum pump side |
| Manifold station No. | 2 stations | Cylinder cover/sub-plate/body/sealant combination | 02 : Polyphenylene sulfide/Copper alloy/Polypropylene/Nitrile rubber |
| Pilot port size | C18 : φ1.8 push-in fitting for fiber tube |
Specifications may be subject to change without notice
