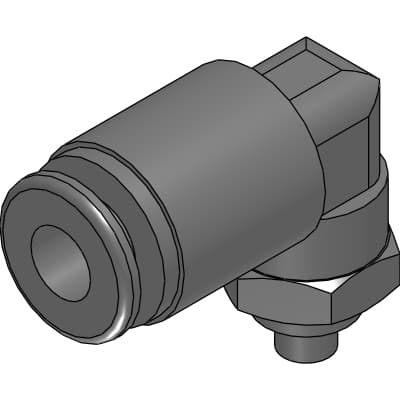

GWJL6-M5
Product ID:51213
Updated: 2026/7/14
Key Features
- 1Compact and Versatile Design: The GWJL6-M5 offers a 90° elbow configuration for efficient piping arrangements.
- 2High-Quality Materials: Constructed with PBT resin for durability and resistance to chemicals and high temperatures.
- 3Easy Installation: Push-to-connect design simplifies tube connection and disconnection processes.
- 4Metric Compatibility: Compatible with metric tubes and male BSPT/metric threads for seamless integration.
- 5Quick Shipping Options: Available in packages of 1-10 pieces with fast shipping options to meet your needs.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | GWJL6-M5 | Compatible tube O.D. φ | 6.0mm |
| Thread | M5x0.8 | Hex | 10mm |
| L1 | 15.5mm | L2 | 18.5mm |
| A | 3.4mm | B | 14.5mm |
| C | 11.8mm | Min. bore size | 2.5mm |
| Eff. X-sectional area | 3.5mm^2 | Weight | 7.0g |
Specifications may be subject to change without notice
