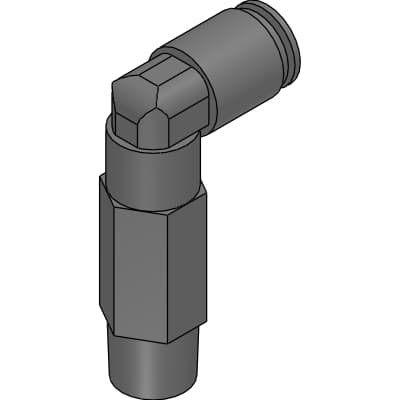

GWL8-6-L
Product ID:50974
Updated: 2026/7/14
Key Features
- 1Compact Design: Lightweight and space-saving design for easy installation.
- 2Flame Retardant: Made with PBT resin, ensuring safety in high-temperature environments.
- 3Easy Installation: Push-to-connect fitting with a V-shaped packing seal for smooth insertion and secure sealing.
- 4High Reliability: Chuck bracket ensures reliable retention of the tube, preventing dislocation.
- 5Food Grade Compatibility: NSF H1 compliant for use in food manufacturing applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | GWL8-6-L | Applicable tube O.D.∅ | 8mm |
| M | R1/8 | H | 14mm |
| L1 | 44.5mm | L2 | 23.5mm |
| A | 8mm | B | 19.0mm |
| C | 14.5mm | Min. bore size | 6.0mm |
| Effective sectional area | 18.0mm^2 |
Specifications may be subject to change without notice
