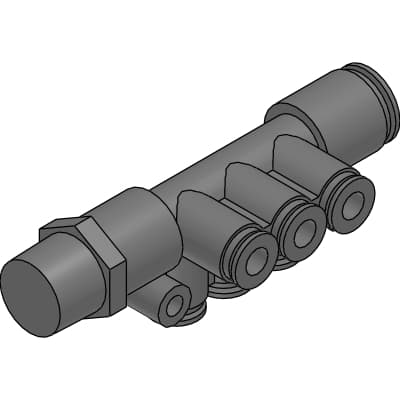

GWMF8-10-W
Product ID:50935
Updated: 2026/7/14
Key Features
- 1Compact size for space-saving in pneumatic piping systems.
- 2Flame-resistant white body for safe operation in various work environments.
- 3Smooth insertion and accurate sealing with V-shaped packing seal.
- 4Freely rotating elbow union for easier piping and removal work.
- 5Push-in installation allows for quick and secure tube connection without tools.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | GWMF8-10-W | Applicable tube O.D.∅ A side | 4mm |
| Applicable tube O.D.∅ B side | 8mm | M | R3/8INCH |
| H | 17mm | L1 | 79.0mm |
| L2 | 19.5mm | L3 | 29.5mm |
| A | 12mm | B1 | 16.0mm |
| B2 | 19.0mm | F1 | 10.0mm |
| F2 | 17.8mm | N1 | 10.5mm |
| N2 | 38mm | P | 10.5mm |
| Effective sectional area | 23.5mm^2 |
Specifications may be subject to change without notice
