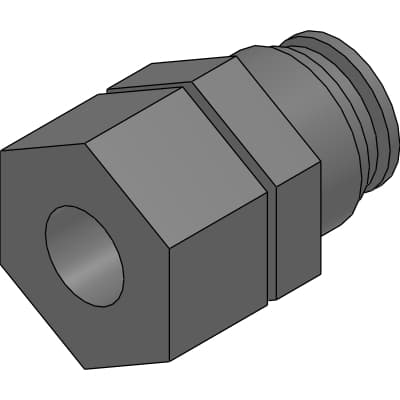

GWS12-15-E
Product ID:52011
Updated: 2026/7/14
Key Features
- 1Brass Construction: Durable and resistant to corrosion.
- 2Flame Retardant: Ensures safety in high-temperature applications.
- 3Easy Push-to-Connect: Simple and quick installation process.
- 4Metric Tube Compatibility: Designed for seamless integration with metric tubes.
- 5Compact Design: Space-saving solution for pneumatic piping systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | GWS12-15-E | Applicable tube O.D.∅ | 12mm |
| M | Rc1/2INCH | H1 | 24mm |
| H2 | 26mm | L | 40.5mm |
| L1 | 18mm | A | 15mm |
| B | 23.0mm | E | 1mm |
| MxP | M22 x 1 | Installation hole diameter | 23mm |
| Min. hole diameter | 9.0mm | Effective sectional area | 35.5mm^2 |
Specifications may be subject to change without notice
