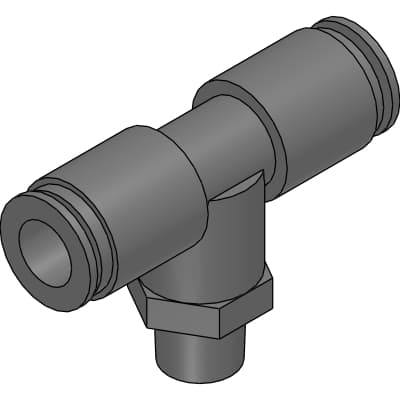

GWT12-10
Product ID:51070
Updated: 2026/7/14
Key Features
- 1Flame-Resistant Design: Made with PBT resin, equivalent to UL94 standards V-0, ensuring safety in various work environments.
- 2Compact Size: Space-saving design for efficient use in pneumatic piping systems.
- 3Easy Installation: Push-to-connect mechanism allows for quick and secure tube insertion with minimal force.
- 4Smooth Sealing: V-shaped packing seal ensures accurate and reliable sealing between the tube and fitting.
- 5Versatile Compatibility: Compatible with tubes of various sizes (φ12) and port diameters (M3 to R1/2).
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | GWT12-10 | Applicable tube O.D.∅ | 12mm |
| M | R3/8 | H | 19mm |
| L1 | 34.5mm | L2 | 29.5mm |
| A | 12.0mm | B | 23.0mm |
| C | 20.0mm | Min. bore size | 9.0mm |
| Effective sectional area | 41.0mm^2 |
Specifications may be subject to change without notice
