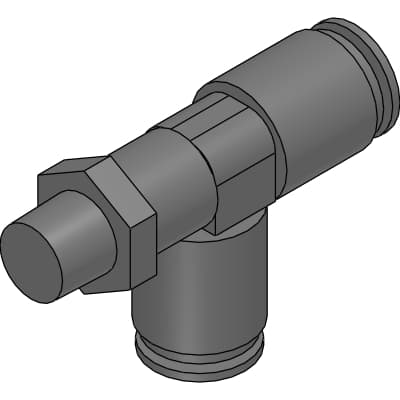

GWT12-15-D
Product ID:50451
Updated: 2026/7/14
Key Features
- 1The GWT12-15-D fitting is designed for space-saving applications, ensuring efficient use of space in pneumatic systems.
- 2Features ozone-proof specifications, making it suitable for clean-room environments and applications requiring high purity.
- 3Constructed with flame-resistant resin, equivalent to UL94 Standards V-0, ensuring safety in various working conditions.
- 4Equipped with a V-shaped packing seal for smooth tube insertion and accurate sealing, reducing installation time and ensuring reliability.
- 5The chuck bracket provides highly reliable retention, ensuring the tube remains securely in place even during dislocation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | GWT12-15-D | Applicable tube O.D.∅ | 12mm |
| M | R1/2 | H | 22mm |
| L1 | 37.5mm | L2 | 29.5mm |
| A | 15.0mm | B | 23.0mm |
| C | 20.0mm | Min. bore size | 9.0mm |
| Effective sectional area | 41.0mm^2 |
Specifications may be subject to change without notice
