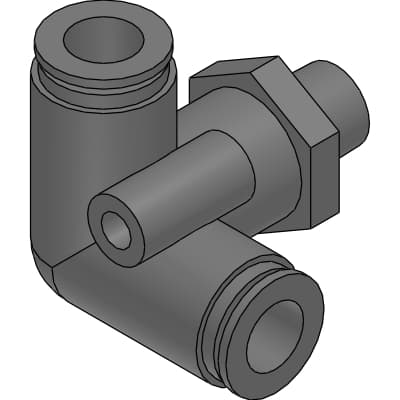

GWTR12-8
Product ID:50877
Updated: 2026/7/14
Key Features
- 1Made with flame retardant resin (UL94 V-0 equivalent) for safety in high-temperature environments.
- 2Constructed with brass (electroless nickel plating) for long-lasting performance and resistance to corrosion.
- 3Features a tetra-type R screw mount for straightforward and secure connection.
- 4Compatible with 12 mm tube outer diameter and suitable for various air applications.
- 5Comes with standard sealant for R screw connections, ensuring a secure and leak-free fit.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | GWTR12-8 | Applicable tube O.D.∅ | 12mm |
| M | R1/4 | H | 22mm |
| L1 | 41.5mm | L2 | 30.0mm |
| A | 11.0mm | B | 23.0mm |
| C | 20.0mm | E | 4.2mm |
| F | 21.0mm | N | 14.0mm |
| Min. bore size | 8.5mm | Effective sectional area | 37.5mm^2 |
Specifications may be subject to change without notice
