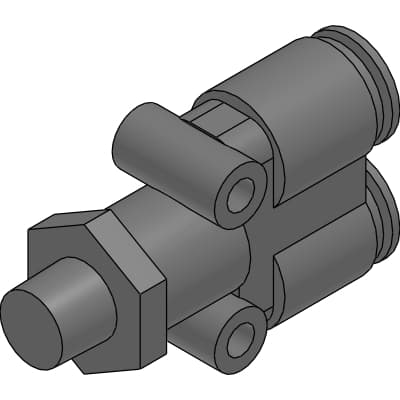

GWY12-8
Product ID:50878
Updated: 2026/7/14
Key Features
- 1Flame-Resistant Design: The GWY12-8 fittings are made with flame-resistant white body for enhanced safety.
- 2Branch Y Configuration: Ideal for branching connections, providing a versatile solution for various piping needs.
- 3Metric Thread Compatibility: Compatible with metric threads, ensuring seamless integration into existing systems.
- 4PBT Resin Material: Constructed from PBT resin, offering high durability and resistance to chemicals.
- 5Easy Installation: Push-to-connect design simplifies installation, reducing assembly time and effort.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | GWY12-8 | Applicable tube O.D.∅ | 12mm |
| M | R1/4mm | H | 22mm |
| L | 64.5mm | A | 11.0mm |
| B | 23.0mm | D | 41mm |
| E | 4.2mm | F | 21.0mm |
| J | 32.0mm | P | 21.0mm |
| Effective sectional area | 37.0mm^2 |
Specifications may be subject to change without notice
